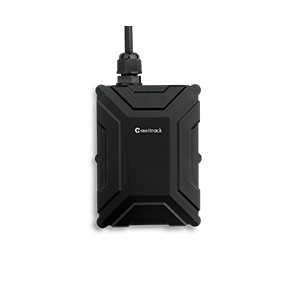

T799L

Bluetooth Sensor Connectivity
Wi-Fi Data Transmission
Flexible I/O Integration
Driving Behavior Monitoring
Wide Voltage Input

Category: GNSS Trackers 4G Bluetooth Wi-Fi Wide Voltage Flexible I/O CAN (Optional)

Features

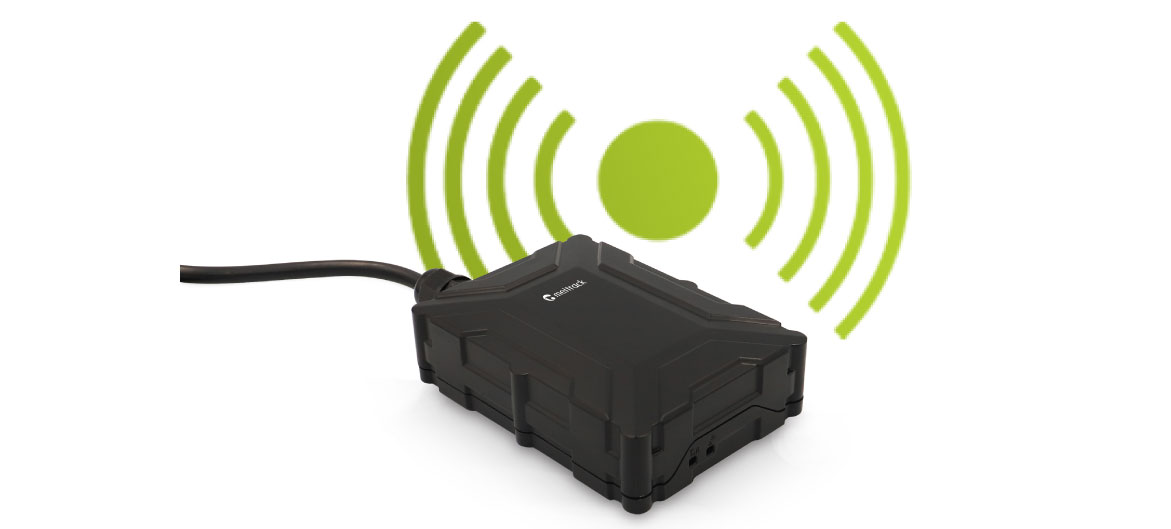

Bluetooth Sensor Connectivity

Supports Bluetooth temperature and humidity sensors and Bluetooth beacons for wireless environmental and asset monitoring.

WiFi Data Transmission

Built-in 2.4 GHz Wi-Fi supports direct data transmission in supported network environments.

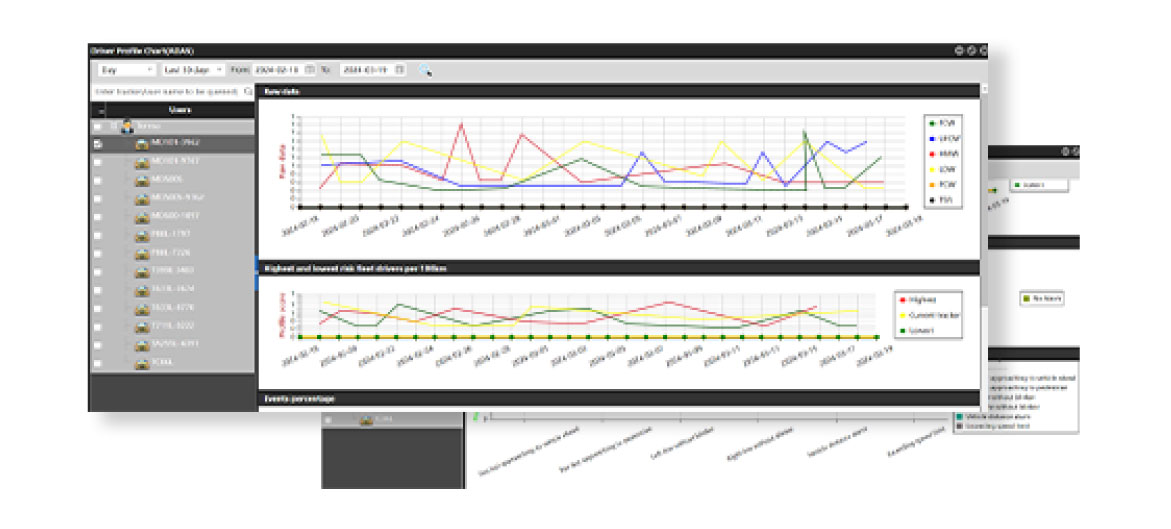

Driving Behavior Monitoring

Detects driving events including harsh acceleration, harsh braking, sharp turns and idling to support efficient fleet management.

Flexible I/O Integration

Supports multiple interfaces and peripheral connections for flexible vehicle and device integration.

Specifications

Communication and Positioning
	GSM	4G LTE
	GNSS antenna	GPS/GLONASS/BeiDou
	Bluetooth	Bluetooth 5.3
	Positioning accuracy	2.5 meters
Power
	Power supply	DC 11.4–90 V / 1.5 A
	Backup battery	400 mAh / 3.7 V
	Power consumption	65 mA (standby)
Physical Specifications
	Dimensions	80.5 mm × 60 mm × 23.5 mm
	Weight	100 g
Operating Environment
	Operating temperature	-35°C to 80°C (without battery); -10°C to 60°C (with battery)
	Operating humidity	5% to 95%
	Ingress protection	IP67
Functions
	Memory	8M
Frequency Bands
	Global	T799L-GFW1B5U2 LTE FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/ B17/B18/B19/B20/B25/B26/B28/B66/B71 LTE TDD:B34/B38/B39/B40/B41
	Latin America	T799L-LAFW1B5U2 LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66
	European	T799L-EFW1B5U2 LTE FDD:B1/B3/B5/B7/B8/B20/B28 LTE TDD:B38/B40/B41
	China	T799L-CFW1B5U2 LTE FDD:B1/B3/B5/B8 LTE TDD:B34/B38/B39/B40/B41
Others
	Certification	CE
Supported Peripherals
	RFID	√
	iButton	√
	Relay (12 V/24 V)	√
	Buzzer	√
	BLE temperature & humidity sensor	√
	Fuel level sensor	√
	Digital temperature sensor	√
	Ultrasonic fuel level sensor	√

เครื่องประดับ

AST101 Bluetooth Temperature & Humidity Sensor
AST103 Bluetooth Temperature & Humidity Sensor
A54fuel level sensor

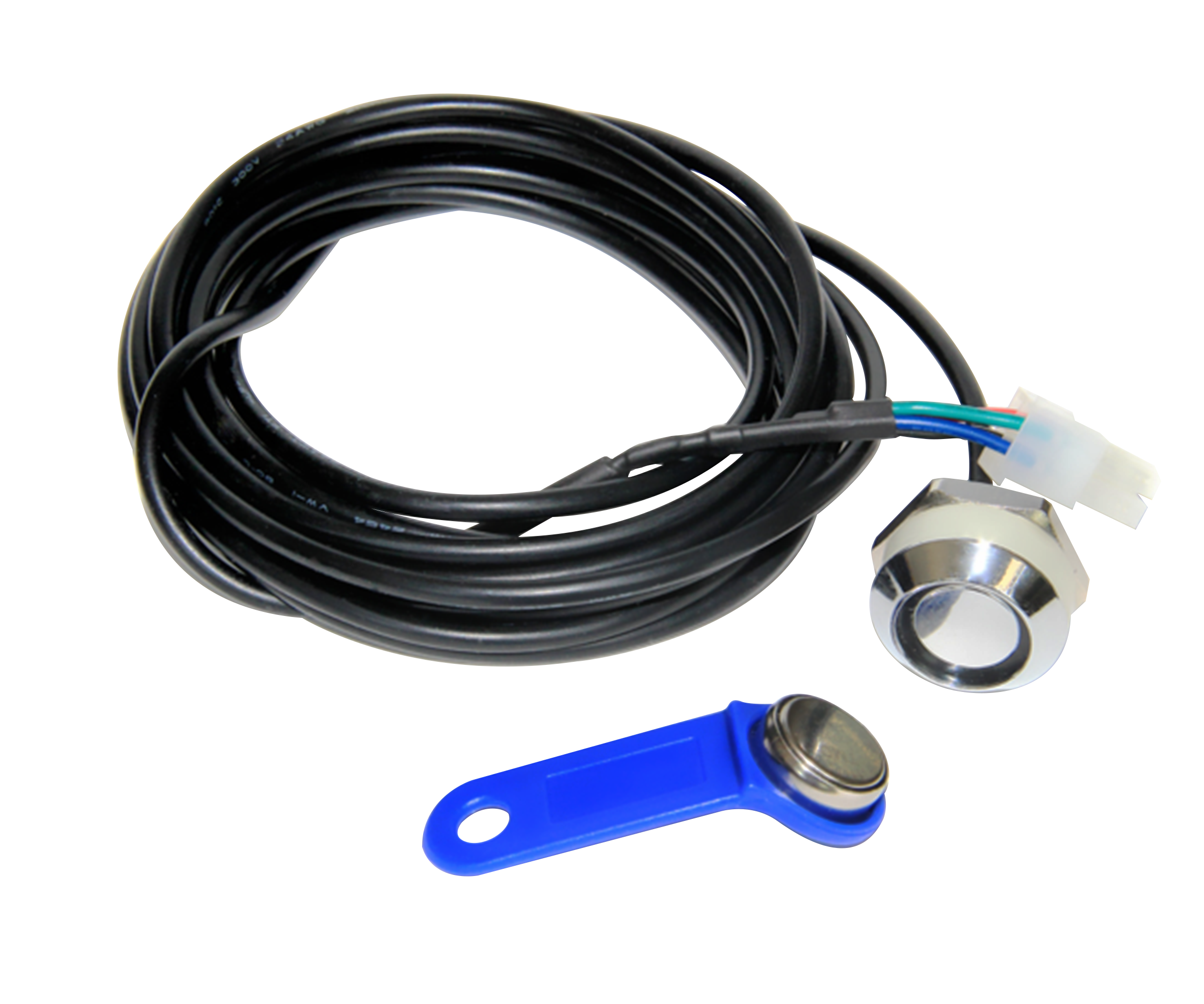

iButton reader
RFID reader
Ultrasonic Fuel Sensor (Range 100/250cm)
Door magnetic sensor
Digital temperature sensor
